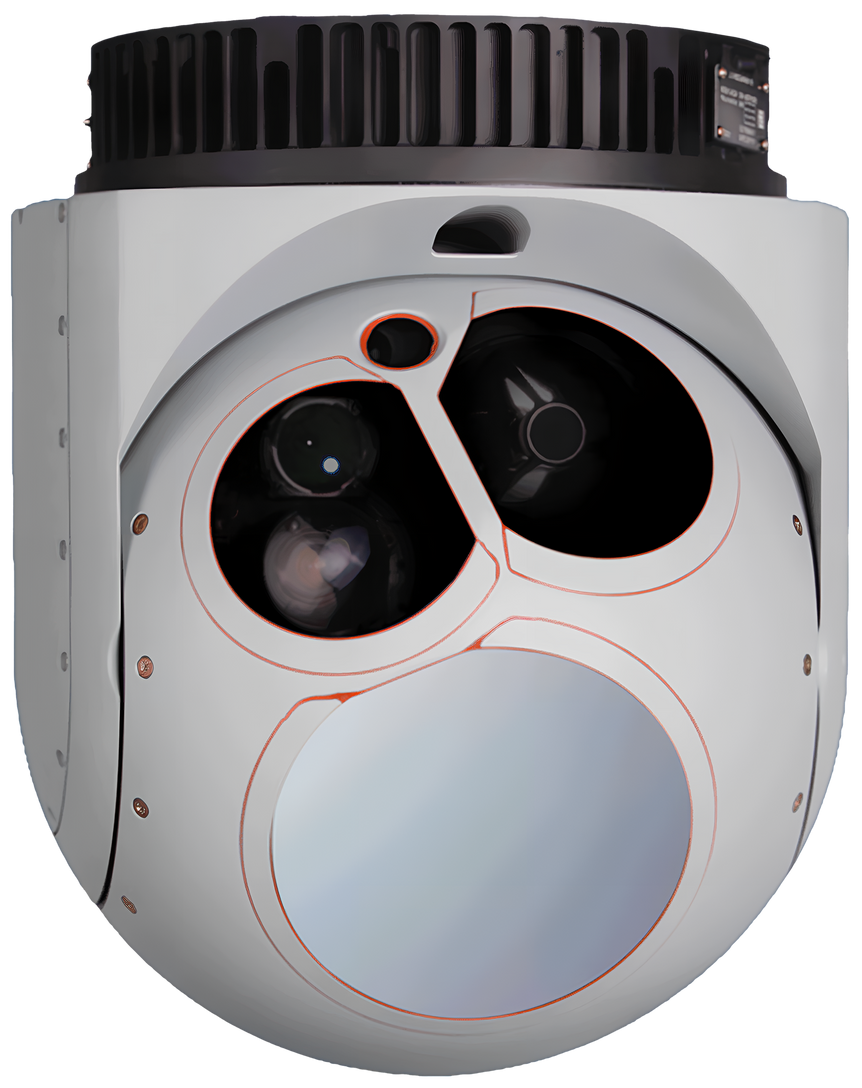

WESCAM MX-15

delivery time

upon request

The WESCAM MX-15 series is the first choice for medium altitudes


Typical flight altitude up to 15000 feet approx. 4500 m
Electronics fully integrated in the housing
HD video camera
HD thermal imaging camera
Integrated passive vibration isolation
High-precision active 4-axis stabilization for high-quality images
Dimensions:

394 mm diameter
482 mm Height
45,5 kg

Missions & Platforms


Ideal for: ISR – Medium-Altitude Covert Intelligence, Surveillance & Reconnaissance, SAR missions


Installations: Fixed-wing, Rotary-wing, UAV, Aerostat




Product Features & Benefits


Weight-Sensitive Solution


No external electronics unit, direct support of peripherals reduces aircraft wiring

Installed weight reduced by up to 50 lb/22 kg


Multi-Sensor Imaging/Lasing Payload Options


Currently supports up to 6 sensors simultaneously

Superior HD imaging resolution from Electro-Optical (EO) and Infrared (IR) cameras

20% improvement in range performance


Latest Enhancements


High sensitivity color spotter

HD low-light step-zoom spotter

Advanced Video Tracker (AVT)

Embedded MTI

Pseudo-Color IR

HD SWIR

Latest Enhancements – See video of technology enhancements


Image Blending


Blends EO and IR imagery

Spectrally-rich image yields detail that would be invisible in individual senor images


Enhanced Local Area Processing (ELAP)


Real-time image enhancement for EO day, EO night & IR



IR Image Processor (Local Area Processing)


Greatly enhances image detail and scene contract

Increases dynamic range, reduces noise, performs electronic zoom


High-Performance IMU & MX-GEO Software Suite


IMU & MX-GEO work to create accurate target location

MX-GEO automatically aligns to the aircraft

Robust automatic image focus


Uncompromised Stabilization


4-axis gimbal with internal IMU

All payloads are fully-stabilized


WESCAM MX-Series Commonality


Common operator interfaces and Hand Controller Units (HCUs): Ease and familiarity of use

Simplified interchangeability

Efficiencies in product support and technology enhancements

Ease and familiarity of use
